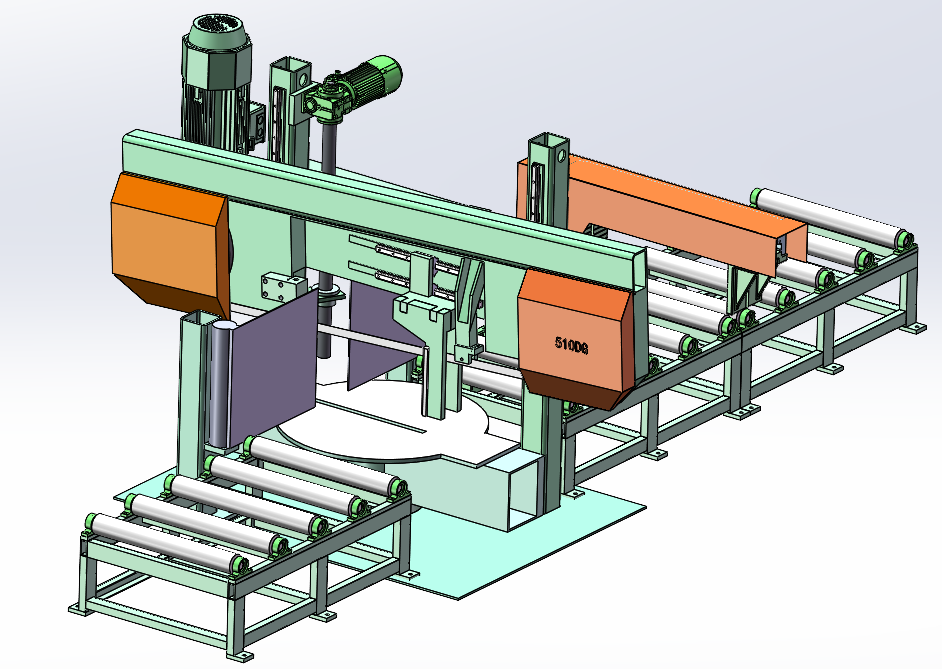

This product is ideal for one-stop sawing of large-section structural steel and high-precision sawing of large-section round steel bars.
It is benchmarked against international high-end sawing machines, featuring excellent equipment stiffness and high sawing accuracy.
PRODUCT PROFILE | |
Model | HS700-510-R |
Name | High-Speed Miter Cutting Saw |
Features：
■ High rigidity
High-strength double-column frame ensures stability during cutting.
■ Supermatic
Fully automatic feeding, clamping and sawing, significantly improving production efficiency.
■ Excellent Precision
Servo motor drive enables high precision positioning and sawing.
■ Mechatronics-Hydraulics synergy
The essence of the entire equipment lies in achieving high precision, high efficiency, and high reliability. Through the deep integration of information flow, energy flow, and control logic, the three work together like an living entity.
90° cutting capability | Inch | Cutting power | Inch | |
H-beam | 27.6”Wide x 20” High Opening | 45°Right | 17” Wide x 20” High | |
Square tube | Up to 27.6” Wide | 45°Left | 17” Wide x 20” High | |
Channel | Up to 27.6” Wide | 60° Right | 13” Wide x 20” High | |
All Angle Iron | Up to 27.6” Wide | 30°Left or Right | 13” Wide x 20” High | |
Main system voltage | 480 volts 3-phase, 60 hertz | Maximum weight of sawn section | 9,000 pounds | |
Saw blade feed rates | Rapid Advance Feed | 0–23 (ipm) | Saw speed | 49-492 (fpm) |
Infinitely Variable Feed Rate | 0-20 inches per minute | Blade size | 240.15” x 1.6” x .051” | |
Saw blade motor | 10 HP at 60hz | Hydraulic unit motor | 1.5 HP at 60hz | |
Saw cut angle | 3° | Hydraulic Oil | 1.3 US Gallons | |
Passline | Height 29.5“ without mounting pads | |||
Overall Machine Dimensions (Length, Width, Height) | 202.76” x 124.02” x 92.52” | Net Machine Weight | 8,488lbs | |
