Aluminum-Steel/ Copper Transition Plate

Part No.	Material A	Material B	Thickness (mm)	Length (mm)	Width (mm)
SAL6	CCSB/Grade A	6082	2~8	≤6000	≥60+60
SAL5	CCSB/Grade A	5083	2~8	≤6000	≥60+60
CUAL	T2/C11000	1060	2~8	≤6000	≥60+60

Technical Configuration:

Material Combinations: Custom orders for dissimilar materials beyond the specified combinations require prior welding procedure qualification.

Width: Custom widths are available upon request. Widths exceeding 150mm for b1/b2 segments require a one-month lead time.

If custom Aluminum-Copper plate joints with thickness ≤20mm, maximum width on either side ≤400mm, and length<6000mm.

Thickness: Butt joints with non-standard thicknesses require a one-month lead time.

Length: Standard lengths: 3000mm/6000mm. Custom lengths are available.

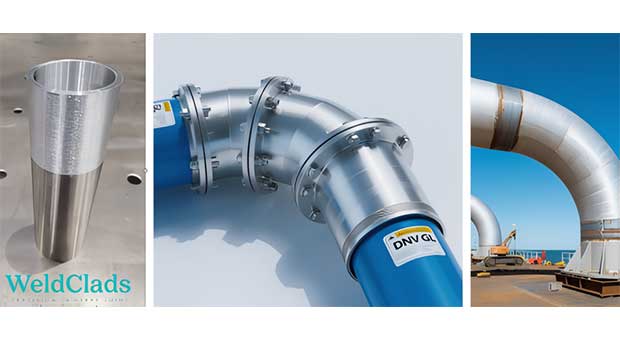

Aluminum Steel/Copper Pipe Joint

Part No.	Material A	Material B	Thickness (mm)	Pipe diameter (mm)	Width (mm)
SAL6	316L	6061	1.5~8	≥30	≥60+60
CUAL	T2/C11000	1060	1.5~8	≤30	≥60+60

All parameters including pipe diameter, wall thickness, flange type, and material grade can be tailored to client specifications

Aluminum-Copper pipe fitting diameter is greater than 30 mm, with a wall thickness ranging from 1 mm to 10 mm.

Aluminum-Titanium Transition Plate

Part No.	Material A	Material B	Thickness (mm)	Length (mm)	Width (mm)
TIAL6	Ti-6Al-4V‌	6082	2~8	≤6000	≥60+60
TIAL5	Ti-6Al-4V‌	5083	2~8	≤6000	≥60+60

Aluminum Steel Pipe Joint

Part No.	Flange Material	Pipe Material	Thickness (mm)	Pipe diameter (mm)	Length (mm)
SUSAL6	316L	6061	1.5~8	≥30	≥50+50

Custom aluminum-titanium plate joint plates with thickness below 20mm, width less than 400mm on one side, and length less than 6000mm.

Custom aluminum-titanium corner joints with thickness below 10mm and titanium alloy width not less than 30mm.

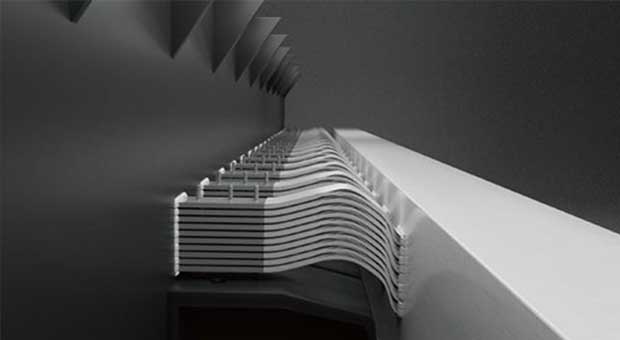

Electrolytic Cell Cathode Soft Strip

Part No.	Material A	Material B	Thickness (mm)	Length (mm)	Width (mm)
FEAL	DT4/Armco Iron	1060	2~20	Coustomizable	Coustomizable

Custom thickness ≤20 mm with unrestricted width and length dimensions.
